SCS – Freedom 4 Solution
Smart. Connected. Safe.

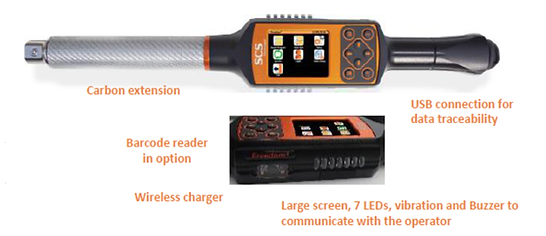

SCS Freedom 4 is a cutting-edge digital torque solution offering unmatched precision, safety, and connectivity. Designed for industrial environments, it combines real-time data traceability, intelligent obstacle and hand detection, advanced tightening strategies, and seamless integration into Industry 4.0 networks.
Whether for production tightening or prototype joint analysis, SCS is built for the future of smart manufacturing.
Key Features
High Accuracy & Autonomy
-
Torque Accuracy: ±0.5% of reading
-
Angle Accuracy: ±1° over 360°
-
Autonomy: Up to 8 hours
-
Memory:
-
1000 tightening programs
-
20,000 results
-
20,000 torque curves
-
Intelligent Safety Solutions
-
Obstacle Detection (Patented): Prevents tool damage or misuse
-
Hand Position Detection: Ensures correct usage before activation
-
End-Fitting Recognition: Confirms proper tool head is attached
Fast & Flexible Operation
-
Start Time: Less than 5 seconds
-
Wireless Communication
-
Tightening Strategies:
-
Torque only
-
Torque + angle
-
Yield
-
Yield + angle
-
Prevailing torque
-
PRW & LAB Application Modes
SCS adapts to both production and testing environments with features including:
-
Wireless management
-
Barcode reader / VIN integration
-
Full data traceability
-
Joint analysis for prototyping
Industrial Universal Hub Controller (FIM-EVO)
One controller. Complete control.
-
Manages up to 12 tools and 6 stations
-
Web server interface for easy setup
-
Up to 100,000 results and torque curves stored
-
Full protocol support: Open Protocol, Toolsnet, XML, PFCS, IPM
-
Fieldbus (Optional): Profinet, Can-bus, etc.
-
7” Color touchscreen + VGA support
-
16 Inputs / 16 Outputs (24V)
-
4 USB ports, serial ports, Wi-Fi, and Ethernet
-
Compatible with geolocation and Bluers
CLS Click Wrench Solution
Smart Click. Total Control.
-
Autonomy: 9–18 hours (5-hour charge time)
-
Click Accuracy: ±4% (ISO 6789 compliant)
-
Torque Accuracy: ±1% of reading
-
Torque Range: 10–100%
-
Angle Accuracy: ±1% of reading
-
Bidirectional RF communication
-
Disassembly Detection: (Coming soon)
-
Stores Torque & Angle data (FIFO 64 values)
-
Sends First Peak & Max torque to controller
LED Status Indicators:
-
Blue: Standby/Admin
-
White: Ready for use
-
Green: OK result
-
Red: NOK or error
-
Orange: Charging / Low Battery
Why Choose SCS?
-
Industry 4.0 Ready – Full connectivity and traceability
-
Safety First – Obstacle, hand, and tool detection
-
Precision & Repeatability – Built for consistent performance
-
User-Centric Design – Large screen, LED, vibration, and sound cues
-
Scalable – Manage multiple tools, stations, and protocols with ease
